Klein bottle: Its inside is its outside

The Klein bottle image is cropped from “Google Images” for reference

Note: In this article, I will explain the Klein bottle in simple language as per my understanding. All the concepts, theories, and predictions may differ based on your knowledge. :)

You know a regular bottle has an inside and outside part. But when a flay wants to wander from the inside part to the outside part of the bottle, it has to traverse the lip that forms the bottle’s mouth. Here is an interesting part! A Klein bottle has no such concept. What seems to be its inside is continuous with its outside.

Let’s just dig deep a little bit!

What is Klein bottle?

• An object that can only exist in four dimensions.
• But every tiny patch of the Klein bottle is 2D. This means that a Klein bottle is a 2D manifold that can only exist in 4-D.
• In a nutshell, the neck of the bottle penetrates into the body without even touching it.
• If you want to make a Klein bottle, you can start with a tube, then turn one end of the tube inside out, and connect it to the other end. Because the inside part and outside parts of the tube are connected together, the Klein bottle really has only one side.
• The special thing about the Klein bottle is: In order to the “inside out” end to connect to the “regular” end, the Klein bottle has to intersect itself.
• This is only true in 3-D because if we had 4-D, we could remove the intersection by moving part of the Klein bottle into the 4th dimension.
• I will try to explain the concert with the help of an illustration as follows:

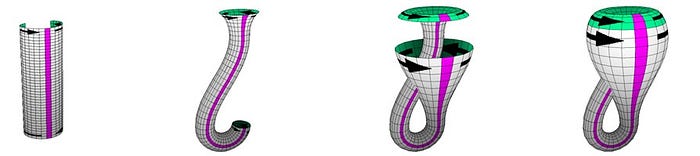

The Klein bottle image is cropped from “Google Images” for reference

• The Klein bottle is formed by joining two sides of the sheet to form a cylinder. Then you can loop the ends of a cylinder back through itself in such a way that the inside part (green-colored) and outside part (grey-colored) of the cylinder are joined.
• Even though it looks like a bottle but unfortunately, it does not hold any volume. That means, it can not hold any liquid. Whatever you pour in will just come back again.

Who invented the Klein bottle?

• The Klein bottle was invented in 1882, by german mathematician Felix Klein.
• He imagined sewing two Mobius loops together to create a single-sided bottle with no boundary.

Felix Klein’s image is cropped from “Google Images” for reference

• When Klein became a professor in Leipzig in 1880, he started to acquire mathematical models. He was a geometer. Felix Klein is best known for his work in non-Euclidean geometry.

What happens when you cut a Klein bottle in half?

• If you cut a Klein bottle in half, it is possible that you can get two Mobius loops.

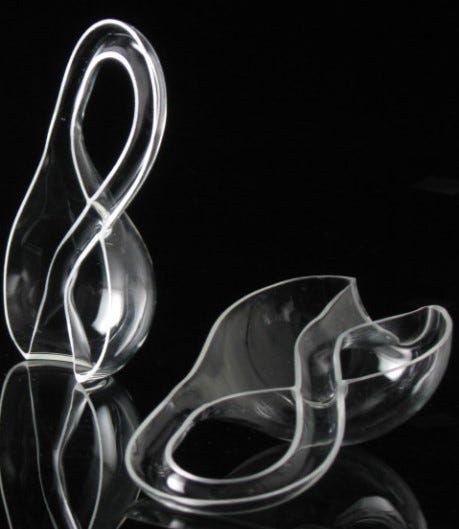

The Klein bottle image is cropped from “Google Images” for reference

• But, it is also possible to cut a Klein bottle in half lengthwise, to get a single long cylinder.
• Similarly, if you cut a solid Klein bottle in half lengthwise, you can obtain either two solid Klein bottles or a single long solid torus, depending on the direction of the cut.

Some Noteworthy resources

• Cutting a Klein Bottle in Half — Numberphile
• What does the 4D Klein Bottle look like? [4D Toys]
• The Mathematical Madness of Möbius Strips and Other One-Sided Objects

Well! It would have been really difficult to drink from the Klein bottle, right??
